Punching machine TRUMPF Mod Trumatic 200

We offer

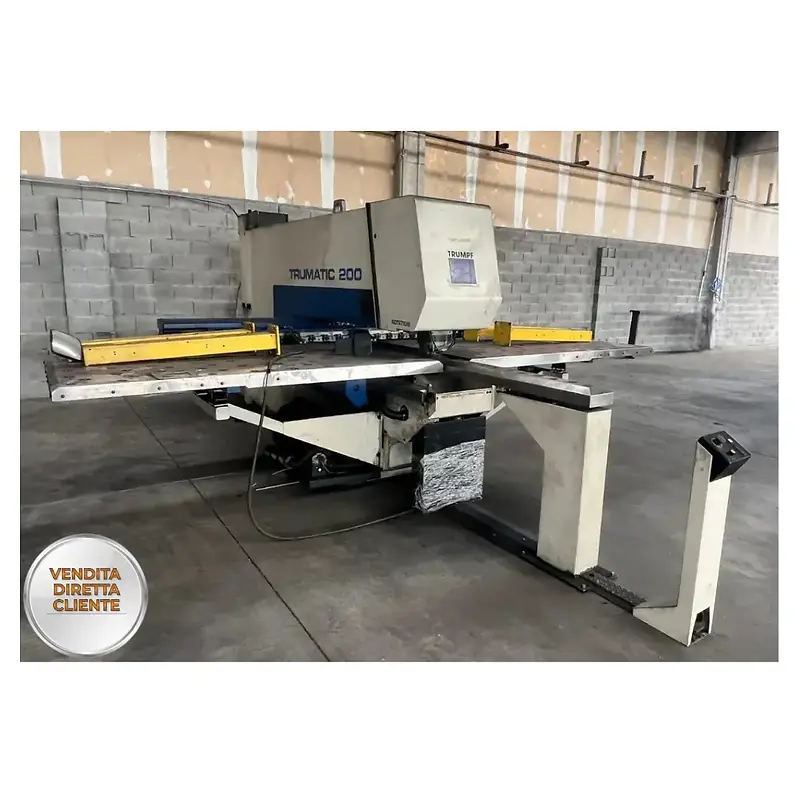

Punching machine TRUMPF
Mod Trumatic 200
Maximum cutting force 16.8 ton
Trumagraph Control
X axis stroke 2070 mm
Y axis stroke 1280 mm
Max X axis speed 80 m/min
Max Y axis speed 55 m/min
Max punch diameter 76 mm
Max workpiece weight 150 kg
Maximum sheet metal cutting thickness 6 mm
Turret tool stations 15
Compressed air connection 6 bar
Ball table

Safety light curtains
Machine dimensions L 6000 mm x l 5600 mm x h 2080 mm
CE compliant machinery
Motor power 14 kw
Machine weight 8000 kg
cod 251082
